Zenith TX2® TAA Endovascular Graft with Pro-Form® Proximal 10 mm Tapered Components

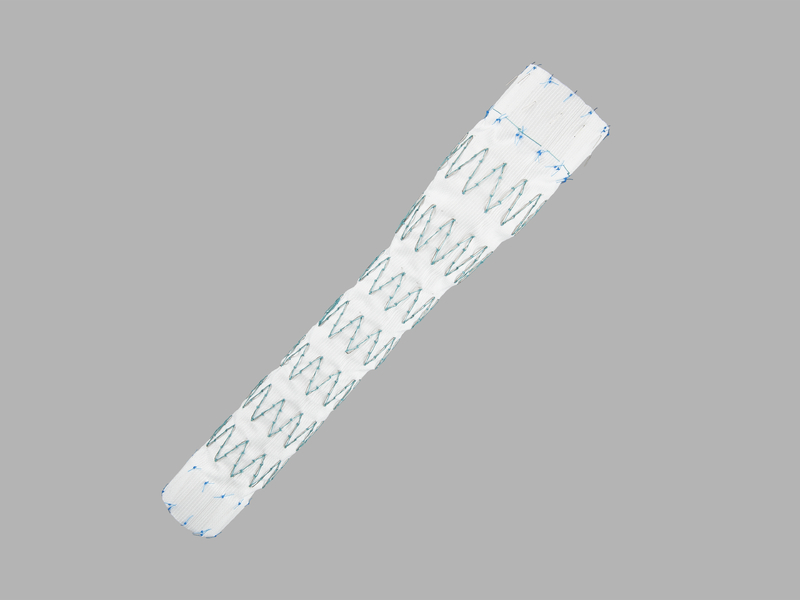

Zenith® TX2® Endovascular Graft with Pro-Form® 10 mm Proximal Tapered Component
Zenith TX2 TAA with Pro-Form in Anatomy

The Zenith TX2 TAA Endovascular Graft with Pro-Form® with the Z-Trak Plus® Introduction System is intended for treatment of patients with aterosclerotic aneurysms, symptomatic acute or chronic dissections, contained ruptures, growing aneurysms and/or resulting in distal ischemia, in the descending thoracic aorta having vascular morphology suitable for endovascular repair.

This product line is serviced by the following clinical division(s):

Instructions for Use (IFUs) linked below are the most current version associated with the product. To find an IFU associated with a specific Lot Number, please visit https://ifu.cookmedical.com/.

Learn How to Order» Set up a customer account and order this or other Cook products
Ask a Support Question» Ask Customer Support about our products or services
Find Product Training» Connect with our Vista® Education & Training program
View Your Account Information» Register your customer number on our Customer Portal

Specifications

Collapsed Expanded
Order Number Reference Part Number Instructions
for Use (IFU) 		MR
Status 		Component Type Aortic Vessel OD mm Proximal/Distal Diameter mm More Info
38 mm Diameter
G23609 ZTEG-2PT-38-28-159-PF
2PT 33-34 38/28 Expand »
Additional Specs
Description
-
Length mm
159
Introducer Sheath ID/OD Fr(mm)/mm
22 (7.3)8.5
G23610 ZTEG-2PT-38-28-199-PF
2PT 33-34 38/28 Expand »
Additional Specs
Description
-
Length mm
199
Introducer Sheath ID/OD Fr(mm)/mm
22 (7.3)8.5
40 mm Diameter
G23611 ZTEG-2PT-40-30-165-PF
2PT 35-36 40/30 Expand »
Additional Specs
Description
-
Length mm
165
Introducer Sheath ID/OD Fr(mm)/mm
22 (7.3)8.5
G23612 ZTEG-2PT-40-30-205-PF
2PT 35-36 40/30 Expand »
Additional Specs
Description
-
Length mm
205
Introducer Sheath ID/OD Fr(mm)/mm
22 (7.3)8.5
42 mm Diameter
G23613 ZTEG-2PT-42-32-165-PF
2PT 37-38 42/32 Expand »
Additional Specs
Description
-
Length mm
165
Introducer Sheath ID/OD Fr(mm)/mm
22 (7.3)8.5
G23614 ZTEG-2PT-42-32-205-PF
2PT 37-38 42/32 Expand »
Additional Specs
Description
-
Length mm
205
Introducer Sheath ID/OD Fr(mm)/mm
22 (7.3)8.5

Compatible with Zenith® t-Branch™Thoracoabdominal Endovascular Graft

Image Library

Zenith® TX2® Endovascular Graft with Pro-Form® 10 mm Proximal Tapered Component
Zenith TX2 TAA with Pro-Form in Anatomy
Zenith® TX2® Endovascular Graft with Pro-Form® 10 mm Proximal Tapered Component
Zenith TX2 TAA with Pro-Form in Anatomy
