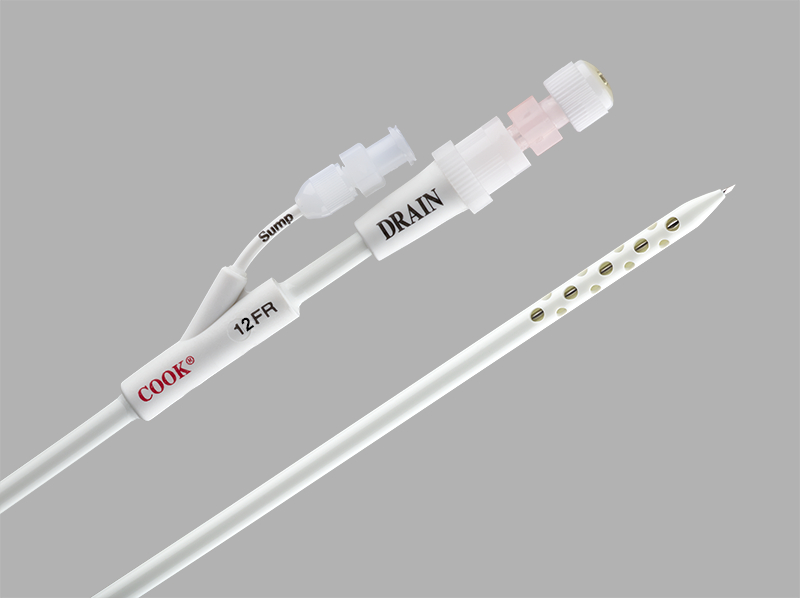

Ring-McLean Sump Drainage Set

Ring-McLean Sump Drainage Set
Ring McLean Sump Drainage Set - Straight

Used to drain abscesses.

This product line is serviced by the following clinical division(s):

Instructions for Use (IFUs) linked below are the most current version associated with the product. To find an IFU associated with a specific Lot Number, please visit https://ifu.cookmedical.com/.

Learn How to Order» Set up a customer account and order this or other Cook products
Ask a Support Question» Ask Customer Support about our products or services
Find Product Training» Connect with our Vista® Education & Training program
View Your Account Information» Register your customer number on our Customer Portal

Specifications

Collapsed Expanded
Order Number Reference Part Number Instructions
for Use (IFU) 		MR
Status 		Catheter
Fr 		Wire Guide
Diameter
inch 		Catheter
Length
cm 		More Info
Cook-Cope Type Locking Loop
G07768 RMSU-12-18-ACL
N/A 12 .038 18 Expand »
Additional Specs
Description
-
Catheter Sideports
8
Included Components
Description
Quantity
Trocar stylet
1
Cook-Cope Ring-McLean Sump Drainage Catheter
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
G07767 RMSU-14-18-ACL
N/A 14 .038 18 Expand »
Additional Specs
Description
-
Catheter Sideports
8
Included Components
Description
Quantity
Trocar stylet
1
Cook-Cope Ring-McLean Sump Drainage Catheter
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
G07771 RMSU-16-18-ACL
N/A 16 .038 18 Expand »
Additional Specs
Description
-
Catheter Sideports
8
Included Components
Description
Quantity
Trocar stylet
1
Cook-Cope Ring-McLean Sump Drainage Catheter
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
Straight
G07505 RMSU-12-30
N/A 12 .038 30 Expand »
Additional Specs
Description
-
Catheter Sideports
13
Included Components
Description
Quantity
Trocar stylet
1
Ring-McLean Sump Drainage Catheter - Straight
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
G07224 RMSU-14-30
N/A 14 .038 30 Expand »
Additional Specs
Description
-
Catheter Sideports
13
Included Components
Description
Quantity
Newton curved wire guide
1
Trocar stylet
1
Catheter introduction stiffening cannula
1
Cook-Cope Ring-McLean Sump Drainage Catheter
1
Connecting tube
1
One-way stopcock
1
Catheter securement device
1
G07504 RMSU-16-30
N/A 16 .038 30 Expand »
Additional Specs
Description
-
Catheter Sideports
13
Included Components
Description
Quantity
Trocar stylet
1
Ring-McLean Sump Drainage Catheter - Straight
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
Curved
G07725 RMSU-12-30-MPB
N/A 12 .038 30 Expand »
Additional Specs
Description
-
Catheter Sideports
5
Included Components
Description
Quantity
Trocar stylet
1
Ring-McLean Sump Drainage Catheter - Curved
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
G07726 RMSU-14-30-MPB
N/A 14 .038 30 Expand »
Additional Specs
Description
-
Catheter Sideports
5
Included Components
Description
Quantity
Trocar stylet
1
Ring-McLean Sump Drainage Catheter - Curved
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1
G07727 RMSU-16-30-MPB
N/A 16 .038 30 Expand »
Additional Specs
Description
-
Catheter Sideports
5
Included Components
Description
Quantity
Trocar stylet
1
Ring-McLean Sump Drainage Catheter - Curved
1
One-way stopcock
1
Newton curved wire guide
1
Catheter introduction stiffening cannula
1
Connecting tube
1
Catheter securement device
1

Documents

Catalog

Percutaneous Abscess and Multipurpose Drainage Catalog

IR-WF393830-EN-F_M3_1745870517065.pdf »
English

Image Library

Ring-McLean Sump Drainage Set
Ring McLean Sump Drainage Set - Straight
Ring-McLean Sump Drainage Set
Ring McLean Sump Drainage Set - Straight
